Outdoor 8-port GPON OLT

Model No.:FV-L7008

FV-L7008 is an Outdoor 8-port GPON OLT device with optional built-in EDFA fiber amplifier.
The product follows the ITU-T G.984/G.988 technical standard.
The product has good openness, high reliability, complete software functions, and flexibility.
Compatible with any brand ONT.
The product is suitable for outdoor harsh environments, resistant to high and low temperature, and can be widely used in operators‘ outdoor FTTH access, video surveillance, enterprise network, Internet of Things, etc.
This product can be installed on a pole or on a wall, which is convenient for installation and maintenance.

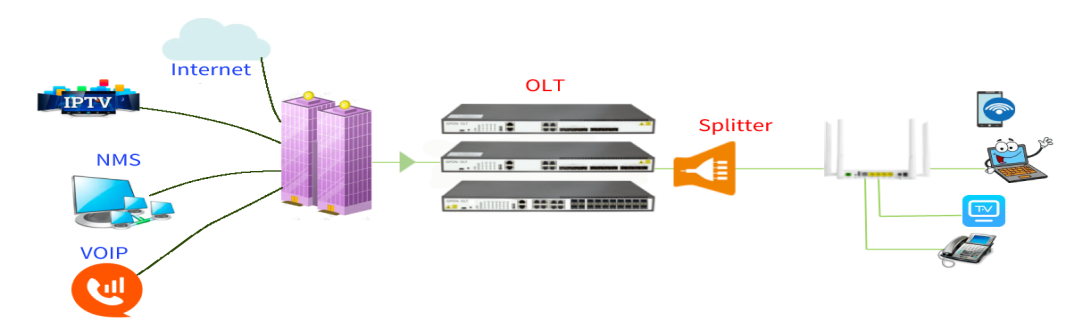

The equipment adopts the industry‘s advanced technology, provides customers with efficient GPON solutions, Supports mixed networking of different types of ONUs, which can save a lot of costs.

Model No. : FV-L7008

The FV-L7008 has an optional built-in EDFA fiber amplifier.
This outdoor GPON OLT product follows the ITU-T G.984/G.988 technical standard, can connect up to 1024 ONUs, and supports 2-layer data forwarding, VLAN/QinQ configuration, STP/RSTP, and 3-layer routing functions (static routing, dynamic routing RIP, OSPF, BGP, ISIS).
The outdoor GPON OLT also has good openness, high reliability, and flexibility; Suitable for harsh outdoor environments, with high and low temperature resistance, it can be widely used for operators‘ outdoor FTTH access, video monitoring, enterprise networks, etc;
Outdoor GPON OLT can be installed on poles or walls for easy installation and maintenance.
This device adopts advanced industry technology to provide customers with efficient GPON solutions and supports mixed networking of different types of ONUs, which can save a lot of costs.
Technical Specifications

Interface Parameters

Uplink Port :
4*GE RJ45 ethernet ports
4*GE SFP/10GE SFP+ ports
PON Port:
8*SFP GPON ports

Management Port :
1*FE RJ45 ethernet port(out-band management)
1*Console local management port
1*Type-C local management port
USB Port :
1*USB2.0 port (Used for save configuration,firmware upgrade and log record)

Access Capacity
Exchange Capacity: 118Gbps
Packet Forwarding Rate: 77.376Mpps
Max User(ONTs) Connect: 1024

PON Parameters
Transmission Distance: 20KM
Optical Split Ratio:  1:128 on single port
Compliant Standard:  ITU-T G.984.x/G.988
Interface Type: Class C+/Class C++/Class C+++ SFP slot
Fiber Type:  9/125μm SMF
Port Rate:
Downstream: 2.488Gbps, Upstream: 1.244Gbps
Wavelength:  1490nm/1310nm

Device Parameters
Power:  AC: 100~240V 47/63Hz, DC:  -48V~-75V
1+1 dual power supply redundancy
Power Consumption:  <=65W
Dimensions:  370mm(L) x295mm(W) x152mm (H)
Weight:  <= 9.5kg
Operating Temperature:  -20°C to +55°C
Storage temperature:-40°C~70°C
Operating humidity:  10% to 95%(Non-condensing)

L2 Features
4K VLAN,VLAN based on port/MAC/protocol
VLAN transparent/tag/trunk/static QinQ/flexible
QinQ/Dual Tag VLAN
16K mac address,MAC address aging/learning/query
9K Jumbo frame forwarding

L3 Features
ARP learning/aging/proxy
L3 interface(vlan if)
Static routing
Dynamic routing RIP/OSPF/BGP/ISIS

Network Protection
ERPS Ethernet ring network protection protocol
Loop detection
Static link aggregation and dynamic LACP

Security Features
Broadcast/multicast flooding rate limitation
ARP flood suppression and ARP spoofing protection
DOS attack and virus attack protection
IEEE 802.1X authentication, support Radius&TACACS+authentication
IP Source Guard
MAC address learning limit/black hole MAC/MAC filtering function
Port isolation
Basic ACL and extended ACL
CPU protocol packet rate limit and scheduling

System Management
CLI, Telnet, WEB, SNMP V1/V2/V3, SSH2.0
User management
Support RMON function
Support log, alarm management
Support SNTP function
Ping, Tracert function

IGMP snooping/poxy/transparent
1024 multicast groups


Flow rate limiting function based on custom business flow
Mirroring and redirection functions based on custom business flows
Priority marking based on custom service flow
802.1P, DSCP priority Remark capability
Port-based priority scheduling function
Queue & scheduling mechanism: SP/WRR/DWRR/SP+WRR
